Microbiology Lab

Exercise 36: Morphological Study of Unknown Bacterium

Exercise 37: Cultural Characteristics

Exercise 47: Bacteriological Examination of Water: Qualitative Tests

REVIEW LAB RESULTS FROM LAST WEEK

Ex. 30: Ultraviolet Light: Lethal Effects

We will review the growth on the plates we started last week.

We will record our results as follows…

+++ substantial growth

++ moderate survival

+ 3 or fewer colonies survived

- no growth

Bacteria	S. aureus
Exposure Time	10 sec.	20 sec.	40 sec.	80 sec.	2.5 min.	5 min.	10 min.	20 min.
Protection	½ covered	½ covered	½ covered	½ covered	½ covered	½ covered	½ covered	Petri dish lid
Survival
Bacteria	B. megaterium
Exposure Time	1 min.	2 min.	4 min.	8 min.	15 min.	30 min.	60 min.	60 min.
Protection	½ covered	½ covered	½ covered	½ covered	½ covered	½ covered	½ covered	Petri dish lid
Survival

Ex. 32: Evaluation of Alcohol: Its Effectiveness as an Antiseptic

Supplemental: Evaluation of Hand Sterilizers

Count the number of colonies that has grown in each of the thumbprints and record them in the table below. Calculate the percentage of reduction using the following formula…

Percent = (Colony count 1^st press) – (Colony count 2^nd press) X 100

Reduction (Colony count 1^st press)

(If the number of colonies has increased in the second press, record a 0 in percent reduction.)

	LEFT THUMB (control = untreated)			RIGHT THUMB (treated)
	Colony count 1^st press (A)	Colony count 2^nd press (B)	Percent Reduction	Colony count 1^st press (C)	Colony count 2^nd press (D)	Percent Reduction
Alcohol Immersion
Alcohol Swab
Hand Sanitizer

Ex. 35: Effectiveness of Hand Scrubbing

Count the number of colonies that has grown in each of the thumbprints and record them in the table below.

	CULTURE COUNTS
	1^st press	20 sec.	2 min.	4 min.	6 min.	8 min.	10 min.	12 min.
Regular hand soap
Anitbacterial hand soap
Plain dish soap
Antibacterial dish soap

Do Antibacterial soaps provide better hand sanitation? ____________________

________________________________________________________________________________________________________________________________

Are they more useful in some situations than others? _____________________

________________________________________________________________________________________________________________________________

Ex. 36: Morphological Study of Unknown Bacterium

Discussion:

When students are attempting to identify an unknown culture of bacteria, they must collect morphological and cultural characteristic data to assist them in using Bergey’s Manual.

The following steps would be performed…

First Period – from your assigned culture, you would inoculate 2 agar slants.

1. One will be incubated at 20˚C (this is 68˚F, or room temperature).
2. The second will be incubated at 37˚C (this is 98.6˚F, or body temperature).

Second Period – after 24 hours of growth…

1. Determine which of your 2 agar slants had the best growth.
1. You will record this as the presumed optimal growth temperature.
2. The slant with the best growth will become your reserve stock – this slant will be stored in the refrigerator where it will remain viable for several weeks. This slant is a back-up, in case you contaminate your working stock culture.
3. The slant with less work will become your working stock – from this culture, you will perform all assigned tests and stains.
2. From your working stock, perform the following…
1. Gram stain – you will record the following about your bacteria…

i. Record if your bacteria is Gram + or Gram -. Then determine the following…

1. Morphology – the shape of your bacteria (rod, coccus, etc.)

2. Arrangement (single, diplo, strepto, staphylo, etc.)

ii. If your bacteria is a Gram + rod, perform the following…

1. Spore stain – using nigrosine or India ink

a. check for spore formation. If it does form spores, your bacteria belongs either to the genus Bacillus, Clostridium, or Sporolactobacillus

2. Acid-fast stain – using an acid-fast staining kit

a. If your bacteria is acid-fast, it belongs to the genus Mycobacterium

2. Simple stain – using Loeffler’s methylene blue

i. Check for metachromatic granules

Ex. 37: Cultural Characteristics

Supplies:

Assigned bacterial culture working stock

Petri agar dish

Agar slant

Agar deep

Nutrient broth

First period – inoculate media with bacterial culture working stock. Incubate for 24 hours.

Second period – record data about the following cultural characteristics…

1. Growth on nutrient agar slant – Describe the following
1. Color – most will be white or buff colored, however some produce pigments in orange, yellow, etc.
2. Opacity – the more opaque, the more the bacteria grew. Record your growth as opaque, transparent (you can see through it), or translucent (partially transparent)

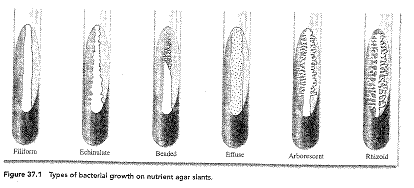

3. Form – be sure to

i. Filiform – uniform growth along the line of inoculation

ii. Echinulate – Growth margins appear toothlike

iii. Beaded – separate colonies grow along the line of incoluation

iv. Effuse – Growth is thin, veil-like, and unusually spreading

v. Arborescent – branched, teethlike growth

vi. Rhizoid – rootlike appearance

1. Growth in nutrient broth – Describe the following
1. At the surface

i. Ring – grows in a ring around the margin of the test tube

ii. Pellicle – grows as a thick skin at the surface

iii. Flocculent – small masses are floating at the surface

iv. Membranous – grows as a thin skin at the surface

2. Subsurface – floating in the broth

i. Turbid – cloudy growth

ii. Granular – small particles

iii. Flocculent – small masses

iv. Flaky – large particles

3. Sediment – at the bottom of the broth

i. Granular – small particles

ii. Flocculent – small masses

iii. Flaky – large particles

iv. Viscid – sticky when prodded

2. Growth in a gelatin stab culture.
1. Record whether the bacteria liquefied the media or not
2. Record type of growth as seen in Fig 37.3
3. Growth on a Petri dish
1. Configuration – you are responsible for 1 à 6
2. Margin – you are responsible for 1 à 6
3. Elevation – you are responsible for 1 à 5 & 8

Ex. 47: Bacteriological Examination of Water: Qualitative Tests

Discussion:

Water can contain large numbers of microorganisms & still be safe to drink (potable). However, waste water or sewage carried into rivers and lakes presents a serious problem. Such water can transmit a number of human pathogens which can cause severe gastrointestinal disease. NEVER assume that any water (even mountain streams) is free of fecal contamination. The consequences of such an assumption can be dire.

Water testing determines if a water supply has been contaminated with fecal material. The test uses members of the coliform (short, gram-negative rods, that don’t produce spores, & that ferment lactose to produce gas) group as indicator organisms of fecal contamination.

Good indicators have 3 qualities…

1) They are not usually found in soil in water (only where animals leave wastes)

2) They are easy to identify

3) They survive just longer than water borne pathogens

(An example of a good coliform indicator organism is Escherichia coli.)

Why don’t we just directly test for pathogens rather than for the indicator organism?

1) Pathogens are difficult (translate that into costly & time-consuming) to test for.

2) Pathogens are present in small numbers which makes them hard to detect.

Examples of water borne pathogens…

Salmonella typhosa, Shigella, Vibrio cholera, Giardia lamblia (Giardiasis), Hepatitis A, polio virus, etc.

Qualitative Test of Water:

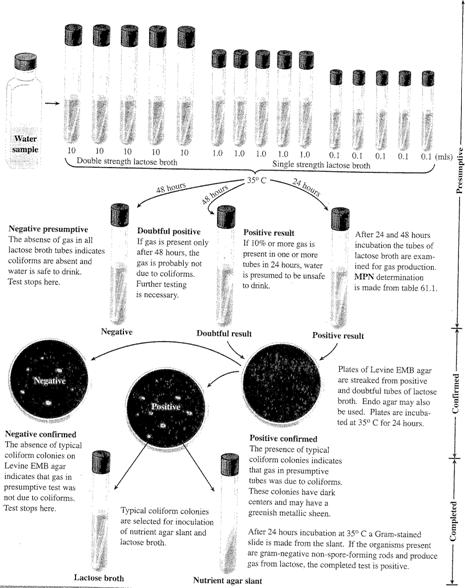

Uses a 3 step process (Review the schematic below)

1) Presumptive Test

· Tests to see if water contains lactose fermenting organisms

· Tests to see if those organisms also produce gas (which becomes trapped in Durham tube)

· Inoculate multiple test tubes (This produces a dilution series.)

o 5 – 10 ml water samples into test tubes containing DSLB (Double Strength Lactose Broth)

o 5 – 1 ml water samples into test tubes containing SSLB (Single Strength LB)

o 5 – 0.1 ml water samples into test tubes containing SSLB

· Positive tubes are those with large air bubbles trapped in the Durham tube

Pictures of postive, doubtful, and negative results

·

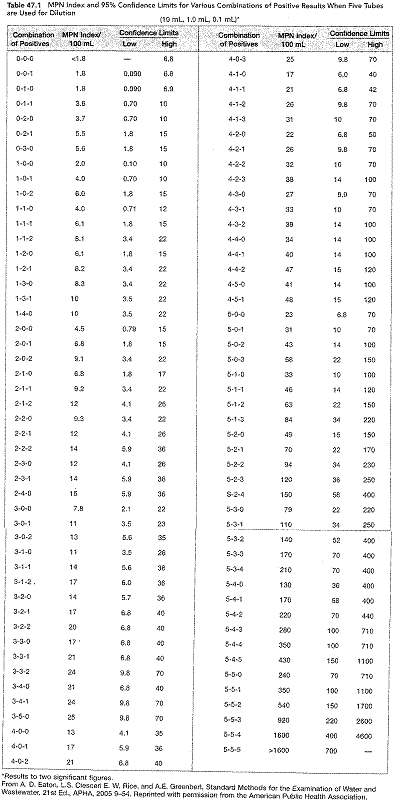

o Calculate the most probable number (MPN) using the table below

· Water samples giving a positive or doubtful positive presumptive test should be subjected to the confirmed test.

2) Confirmed Test

· Streak an EMB plate from a positive tube (one that fermented lactose & produced a gas bubble) with the smallest inoculum of water in a manner that will give well-isolated colonies.

· A positive result is the growth of small, dark colonies (these are coliforms & they indicate contamination of the water with fecal material)

· Some of the colonies may have a green metallic sheen (this is characteristic of E. coli)

·

3) Completed Test

· Choose a typical colony from EMB & inoculate a lactose broth & a nutrient agar slant

· A positive result in the lactose broth is the formation of a gas bubble

· A positive result on the nutrient agar slant is obtained by performing a Gram stain and finding Gram negative, non spore-forming, short rods

· This verifies the results of the presumptive & confirmed tests.

Eosin Methylene Blue agar (EMB) – a selective and differential media

EMB complex inhibits gram positive bacteria, but allows gram negative organisms to grow. Therefore it is selective for gram negative bacteria (a characteristic of a coliform).

EMB allows lactose fermenting organisms to become pigmented (they become dark & may have a green, metallic sheen), but bacteria that don’t ferment lactose will be non pigmented. Thus, EMB is differential. You can literally tell by looking at the colony if it fermented lactose.
